Introduction

Never worked with Jira before? No problem. Please first read the Jira training Basics page. In this chapter below the Jira setup for Yamaha Portfolio Board (YPM) is explained.

Before work is ready for development, any idea for software development is first vetted by the portfolio management, to understand whether the proposal is of strategic value to YME.

Once it is agreed that the idea should be implemented, a selection of what to do first is made based on business case, priority, and urgency. This way we ensure that time is spent on the most valuable topics.

In Jira these ideas are created within Jira-Project Yamaha Portfolio Board (YPB) by  YME Portfolio Board Managers.

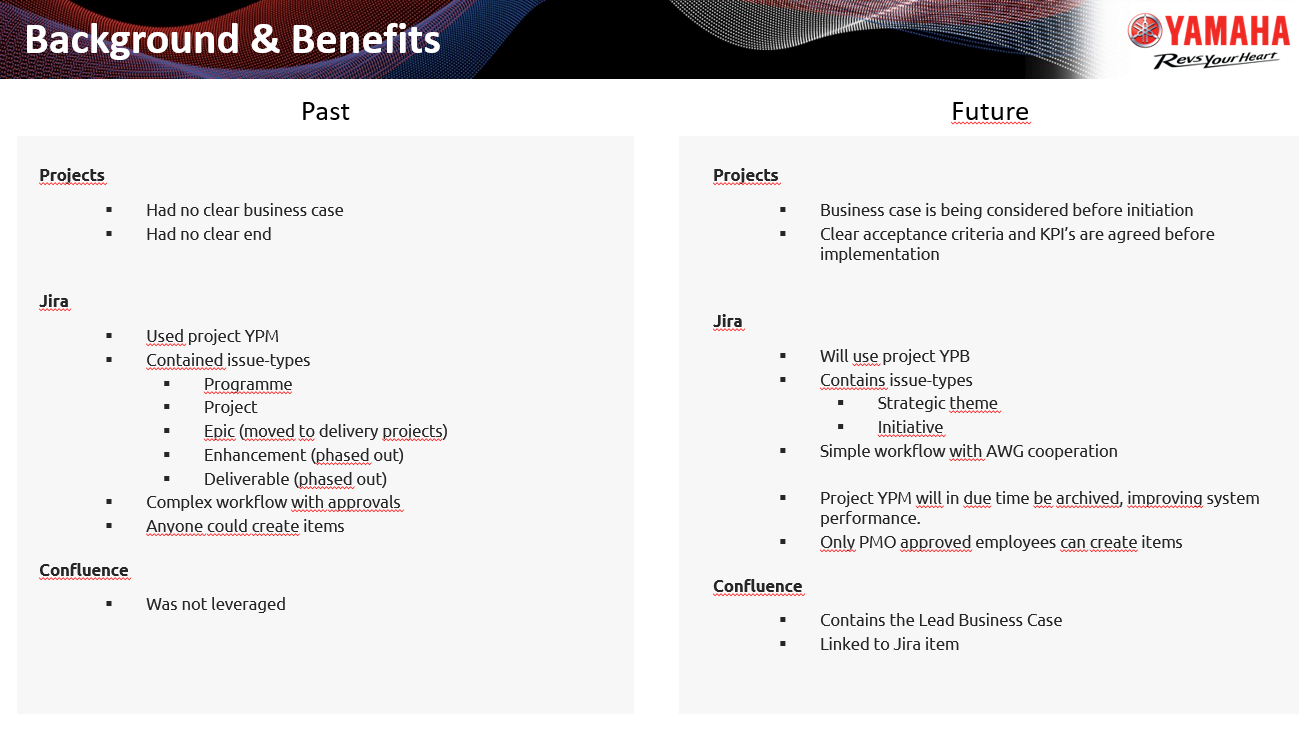

History

In the past we used Jira project YPM. The process has been revised in Jira project YPB for the following reasons:

Yamaha Portfolio Board (YPB)

Yamaha Portfolio Board is a collection of items that together should execute the strategy of the organization and contribute to its goals and objectives.

These items can only be created by YME Portfolio managers - the YME Directors, Division managers, and Product Owners.

All project related documentation can be found under Confluence space Yamaha Portfolio Board. In here you can find Procedures, Training material, report outs, etc.

After approval of the high level plans in Yamaha Portfolio Board (YPB), the development items for delivery (Epics, Spikes, Stories, Tasks) are created by the teams in a Jira Software Delivery Project (YIS/B2C).

YPB Issuetypes

AnInitiative is a collection of Epics that should be completed within a year. Please be reminded that an Epic should be completed within a quarter.

AStrategic Theme is a collection of Initiatives that can span multiple years.

YPB Documentation

You are expected to create a Lean Business Case in confluence for every Initiative or Strategic Theme.

YPB Workflows

Initiatives and Strategic Themes use the same workflow:


Field Configuration

The screen configuration is unique to YPB and contains a limited amount of fields on screen.

YPB specific fields

  • AWG Approval required: If set to yes then the Architecture work group is required to approve the design. Process is described on the following page: Architecture Working Group and Approval process.

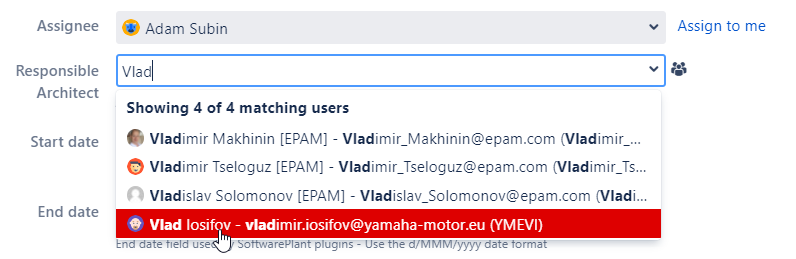

  • Responsible Architect:  used by the Architect Working Group  to select the Responsible Architect used for issue type Programme and Project.
    This  field works similar as the Assignee field.  When you start typing, suggestions will be made of matching users. Select the user to confirm your choice.

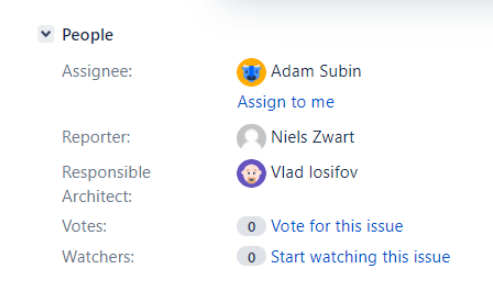

    When set it will appear in the people section on the right hand side:

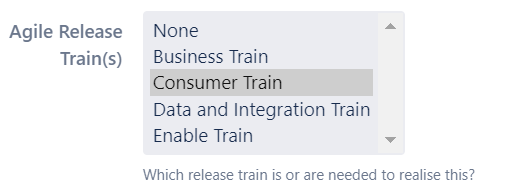

  • Agile release train: initiatives can be assigned to a Train instead of just a team or person:

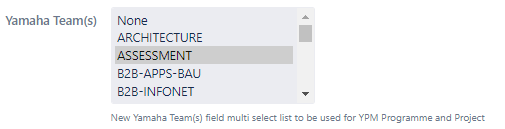

  • Yamaha Team(s):  a multi select field used in Issue type  Programme and Project, Enhancement and Epic.

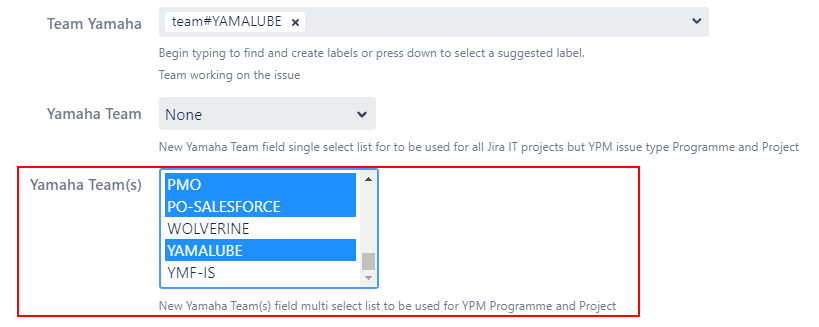

    This field replaces the old Team Yamaha field for these two Issues types. If assistance for a bulk update is required, please contact a Jira Administrator.

    Yamaha Team(s) can be selected via a drop down menu and pressing CTRL to select multiple teams.

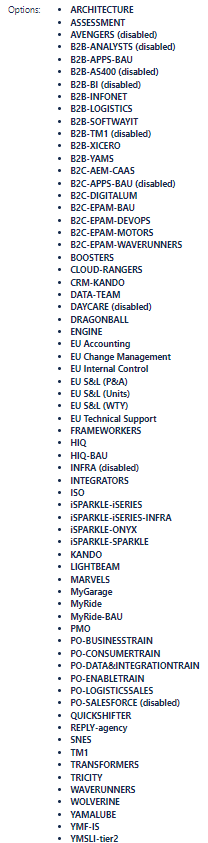

Entry options on  :


When no values are set, select the edit button to add field values.


  • Parent link: Through this field the hierarchy of items can be maintained. A Strategic Theme is the parent of multiple Initiatives, and an Initiative is the parent of multiple Epics.

Note: Do not use other links between Epic/Initiative/Strategic Theme. Parent Link is the only correct way to indicate hierarchy.


  • Project status: This field is used to indicate the high level project management status of the object. The field is shown on the header in a coloured bar.


  • Notes: The Notes field allows explaining the Project Status in multiple lines of text.


  • Tshirt size: Tshirt size is a rough estimation of the amount of work & risk combined to implement this change. Available field values are: S, M, L, XL, XXL, XXXL. The numbers behind the estimation are an indication of expected work days.



Boards

The following boards are used:

Yamaha Portfolio Board - YPB

The Yamaha Portfolio Board - YPB board provides the overview of all initiatives and strategic themes in all phases.

https://support.yamnet.com/secure/RapidBoard.jspa?rapidView=156

Team Delivery Boards

Each team within IS has their own ”work environment”, which they fill with the specific project activities from the YME portfolio board that are assigned to them.
These project activities are always linked to the YME portfolio board and the respective project. These Team delivery boards are strictly used by the IS teams themselves.

All Agile teams work with a Scrum or Kanban board which is linked to Jira YIS project, training for Agile teams can be found on the following pages: Agile & Jira and Jira training for Yamaha IS Projects (YIS) .
